Relay 2A pin config [SOLVED]

[Ezequiel Flores]

I´m trying to connect a DB25 to a 2A relay, the problem I have found it´s that I don´t know where at the ferduino code I can find the P00 value, and to what pin number (of the DB25) it´s connected to.

For example: PIN 1 from the relay 2 DB25 what´s correspond to? where could I assign a funtion to those pins at the code?

Thnak you very much in advance.

[Fernando Garcia]

Have you checked this topic?

Basically you can connect anything to this pin.

The pin 1 on DB25 is connected to P12 from PCF8575 as you can see here.

So, if you want control anything connected on P12 only use it on code:

Code: Select all

const byte MyDevice = 12;


[Joyreef]

i have a problem too..
example:
if i want to connect heater on pin 1 of db25 and cooler on pin 2 of db25...
what should i change in the code?

if i write:

Code: Select all

const byte heater = 1

how could he know we are talking about pcf pin 1 and not normal pin 1?

[Fernando Garcia]

Hi!

As I told above the pin 1 of DB25 is connected to P12 from PCF8575.

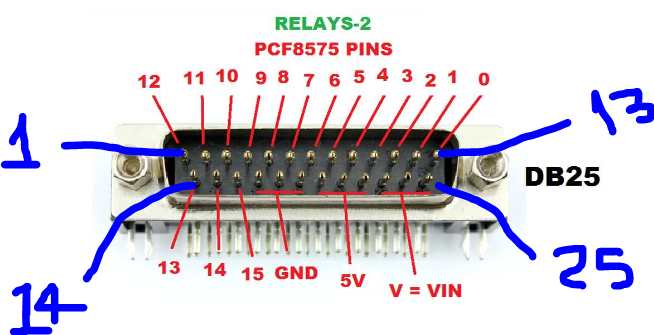

Maybe with this image stay more clear.

You need follow the logic used on topic quoted above.

Using names of variables available on Ferduino I'll give an example.

Only to keep the code organized.

Cut:

Code: Select all

const byte aquecedorPin = 42;

Paste after:

Code: Select all

///**************** PCF8575 **********************************

Change:

Code: Select all

const byte aquecedorPin = 42;

To an number following the order of free pins.

I'll use 0 (Zero) So.

Code: Select all

const byte aquecedorPin = 0;

On setup coment this line:

Code: Select all

  pinMode(aquecedorPin, OUTPUT);

This function sets all pins from PCF8575 as OUTPUT, so the line above is useless.

Code: Select all

  if(PCF8575TS_S == true)
   {
   PCF8575.begin(endereco_PCF8575TS); // Inicia a comunicação com o PCF8575TS
   for(int i = 0; i < 16; i++)
   {
   PCF8575.pinMode(i, OUTPUT);
   delay(100);
   PCF8575.digitalWrite(i, LOW);
   }
   }


In the tab "parametros" find all:

Code: Select all

digitalWrite(aquecedorPin

Replace all with:

Code: Select all

PCF8575.digitalWrite(aquecedorPin

This is the main difference between use a pin from Atmega and PCF8575.

So if you want control something connected to PCF8575 just add :

Code: Select all

PCF8575.

Before:

Code: Select all

digitalWrite

On this case I'm using the P0 from PCF8575 BUT this pin is available on pin 13 of DB25.

Let me know if is more clear now.

Best regards.

[Joyreef]

Thank you Fernando, all clear now

[Ezequiel Flores]

Hi Fernando,

I have connected the PCF8575 using the parallel cable. I have launched the code test of PCF8575.

Measuring the output voltages with a voltimeter, taking pin 17 as GND, I have the follwing results:
- Pins 20, 21, 22 --> 5V That's Ok!
- Pins 1, 2, 3 --> Values ranging from 0v to 0.45v where they sholud be ranging from 0v to 5v. And this is the problem. Any idea of what is happening?

Edit: I have made the same test with the RJ45 relays and they work fine.

[Fernando Garcia]

Hi!

It's normal because the PCF8575 is connected to two ULN2803 as explained here.

The signal is zero volt (GND). If you want 5V needs remove the ULN and do bridges as exaplined on topic above.

Best regards.

[Christopher Kindig]

Hi Fernando which tab do I add code for control of pins from PCF8575?

[Fernando Garcia]

Fernando Garcia » Tue Dec 09, 2014 6:37 pm wrote:

Have you checked this topic?

[Joyreef]

On setup coment this line:

Select all

Code: Select all

  pinMode(aquecedorPin, OUTPUT);

This function sets all pins from PCF8575 as OUTPUT, so the line above is useless.

Code: Select all

Code: Select all
  if(PCF8575TS_S == true)
   {
   PCF8575.begin(endereco_PCF8575TS); // Inicia a comunicação com o PCF8575TS
   for(int i = 0; i < 16; i++)
   {
   PCF8575.pinMode(i, OUTPUT);
   delay(100);
   PCF8575.digitalWrite(i, LOW);
   }
   }

In the tab "parametros" find all:

Select all

Code: Select all

digitalWrite(aquecedorPin

Replace all with:

Code: Select all

PCF8575.digitalWrite(aquecedorPin

[Christopher Kindig]

Yes I did those steps and now I need to where to put name for each pin for what it controls, like use pin 1 for heater , pin 2 for chiller ......
These for the most part are to the relay board, except the pi for chiller is going to need to be different as chiller has it's own relay built in, I am going to change it with a new one that use 5v trigger instead of 12v so ferduino can control with relay not turning power on and off.

[Fernando Garcia]

I don't know where's the problem, all information that I can give is related on this topic.

I just can say: I'm sorry for my bad english.

Maybe translating the comments in Ferduino tab can be more easy.

Code: Select all

const byte ledPinUV = 8; // Pin violet LEDs
const byte ledPinGreen = 9; // Pin green LEDs
const byte ledPinWhite = 10; // Pin white LEDs
const byte ledPinRoyBlue = 11; // Pin blue LEDs
const byte ledPinRed = 12; // Pin red LEDs
const byte fanPin = 13; // Pin that controls the fan speed Heatsink
// 14 & 15 pins reserved for serial port 3 that communicates with the "Stamps"
const byte multiplexadorS0Pin = 16; // Pin S0 control of stamps
const byte multiplexadorS1Pin = 17; // Pin S1 control of stamps
// 18 & 19 pins reserved for the RTC.
// 20 & 21 pins reserved for the PCF8575 I2C communication.
// Pins 22 ~ 41 reserved for LCD.
const byte aquecedorPin = 42; // Pin heater
const byte chillerPin = 43; // Pin chiller
const byte ledPinMoon = 44; // Pin moon light
const byte wavemaker1 = 45; // Pin wavemaker 1
const byte wavemaker2 = 46; // Pin wavemaker 2
const byte ozonizadorPin = 47; // Pin ozone
const byte reatorPin = 48; // Pin calcium reactor


[Christopher Kindig]

ok I see all are named in ferduino tab thank you fernando.

[Christopher Kindig]

I found program that will translate all the comments without missing with the code one done would you like I can send it back and you can use as english.

[Willie McDaries]

Christopher Kindig » Today 1:22 am wrote:

I found program that will translate all the comments without missing with the code one done would you like I can send it back and you can use as english.

can you send me a link to that program ? I translated a lot of the comments in my upscaled version but there's still a lot of it that needs done

[Christopher Kindig]

Sorry willy the program won't what I thought, I have to do one tab at a time

-------------------------------- Last edited Thu Dec 18, 2014 12:08 am --------------------------------

Sorry willy the program won't what I thought, I have to do one tab at a time

-------------------------------- Last edited Thu Dec 18, 2014 12:08 am --------------------------------

Sorry willy the program won't what I thought, I have to do one tab at a time
