1 x Arduino mega 2560 or RobotDyn Mega WiFi (Mandatory)

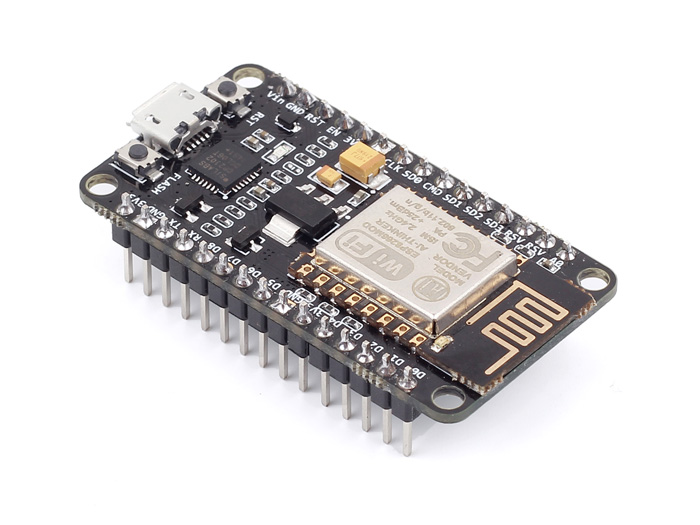

When using this board NodeMCU and ethernet shield or modules are not needed.

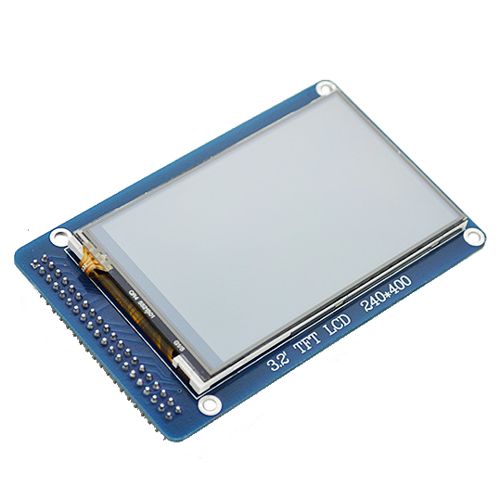

1 x TFT touch screen with resolution 400 x 240. (Optional)



1 X TFT shield (Optional)

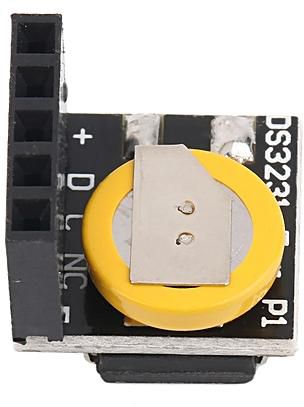

1 x RTC DS3231 module without external EEPROM (Mandatory)



3 x Temperature sensor DS18B20 (Optional)



1 x Relay board (Optional)

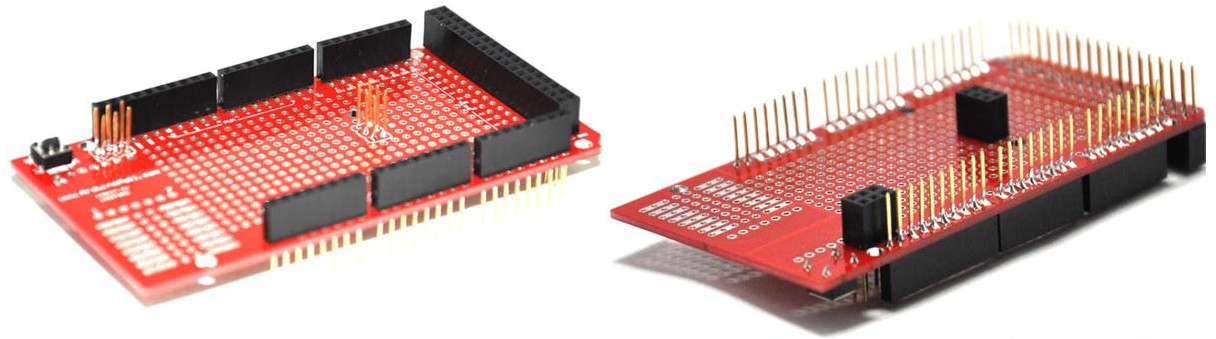

Prototype shield or screw shield (Optional)

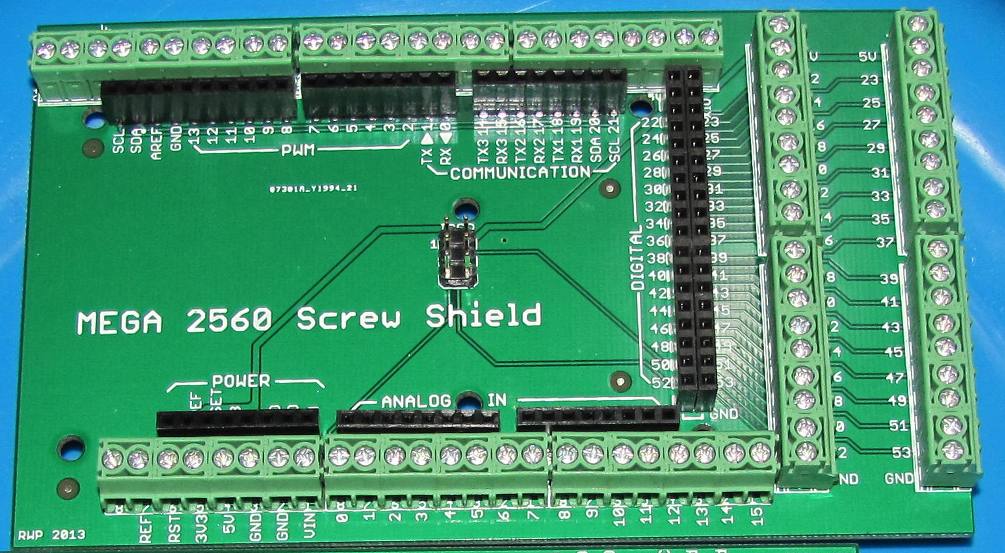

Using this screw shield from Aqualed Light, RTC and TFT shield are not needed.





1 x Ethernet shield W5100, module or ESP8266 - WiFi module (Optional)

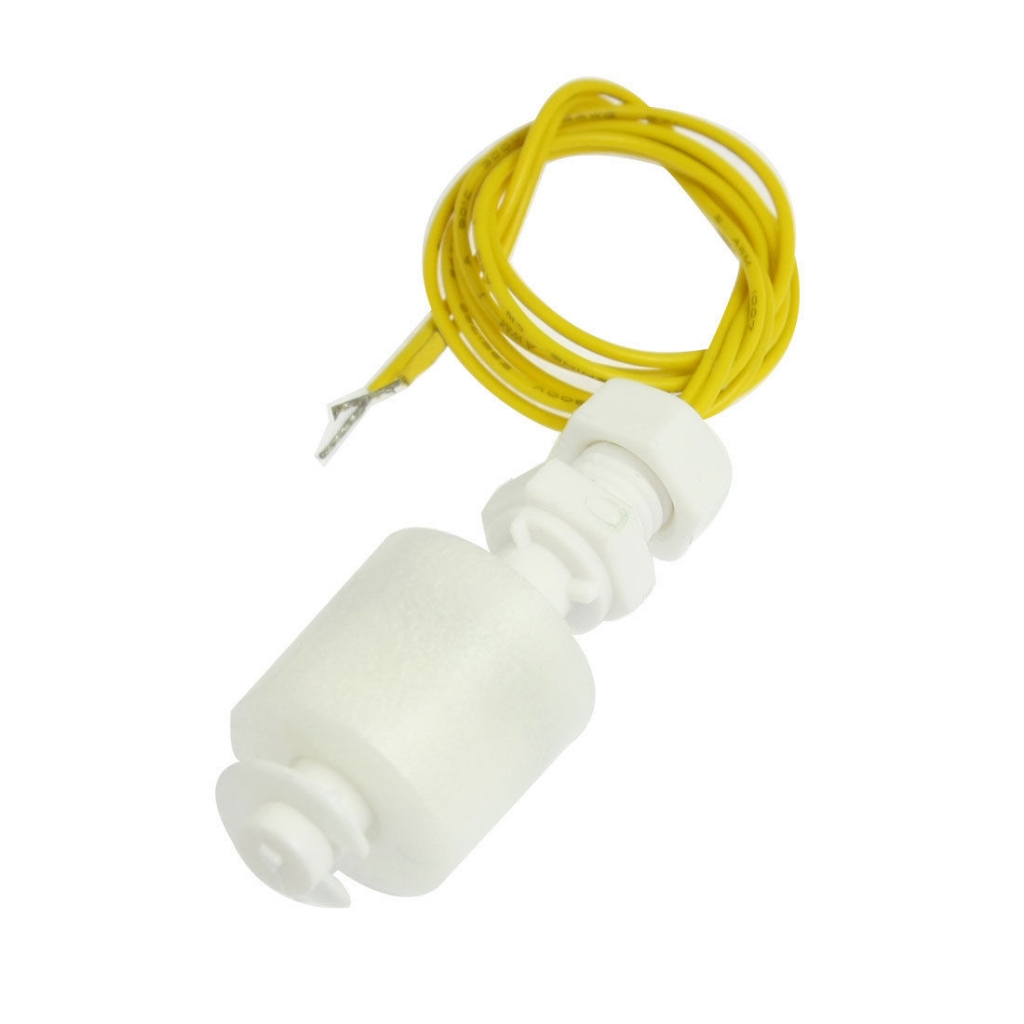

6 x Float switch (Optional)

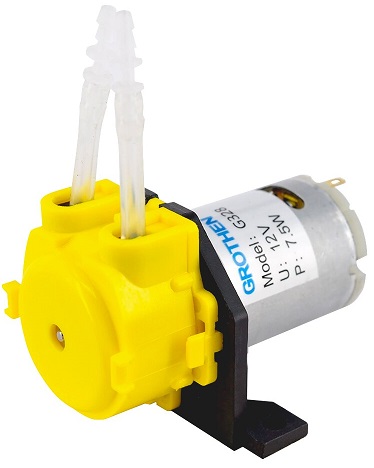

6 x Dosing pump (Optional)

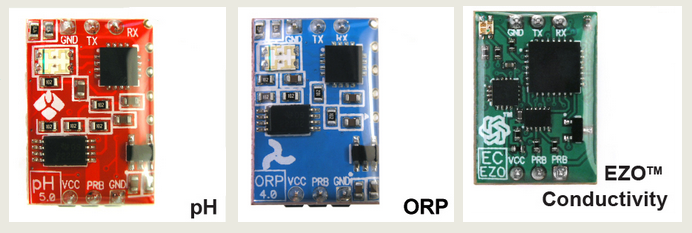

Circuits pH, ORP and EC (Optional)



1 x Multiplexer (Optional)



1 x PCF8575 (Mandatory)



Warning: The red module with PCF8575C IC doesn't work properly with ULN transistors array. The correct IC to work with ULN is PCF8575TS

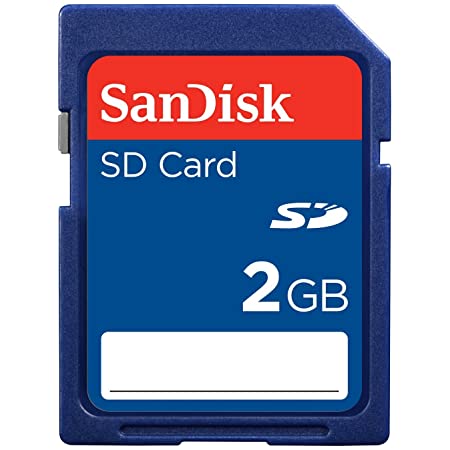

1 x SD card 1 or 2 GB fomatted as FAT (Mandatory)



When using WiFi module without a TFT a SD card module is needed.

Post your doubts on forum because it can help another user too. Just PM me for support if it's absolutely necessary.
