Ask here about your controller made with pieces purchased in other shops.

Post Number:#1 Post Fri May 09, 2014 9:26 pm
Posts: 1578
Topics: 38
Images: 271
Solve rating: 213
Joined: Mon Mar 03, 2014 5:59 pm
Topics: 38
Age: 34
Location: São Paulo
Gender: Male
National Flag:
Brazil

Temperature *:








Level sensor *:

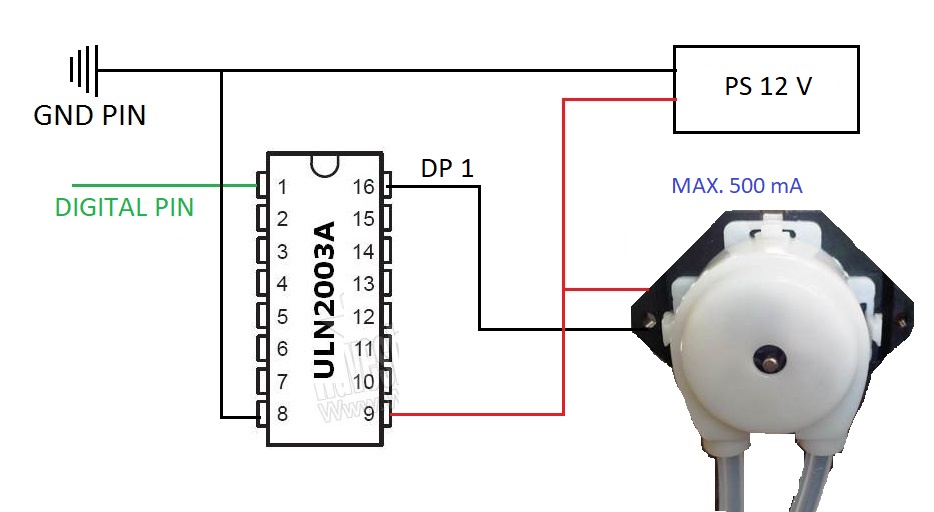

Dosing pump *:




PH, ORP and EC *:



This multiplexer model is obsolete, it's only reference to old model. The wiring for new model is available here.

Buzzer *:



Jebao pump:

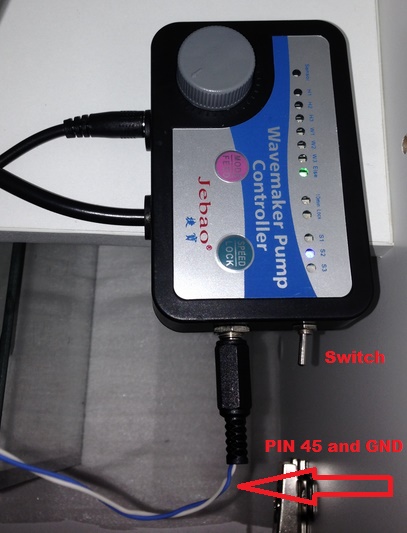

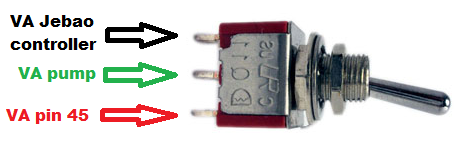

Cut only the wire yellow/green of your Jebao controller and put a switch of 3 poles as shown in the image below.

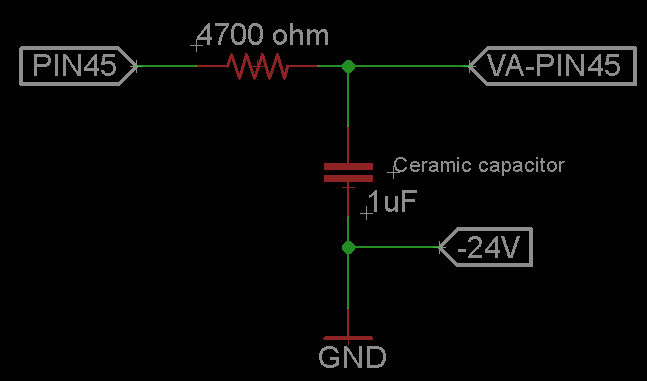

Stripping the wire - 24V and join with GND from arduino.

The result should be something as:



If do you want buy pumps without controller make a board like this:



Here you can find the cable with waterproof connector for Jebao pumps.

LED using a MOSFET:

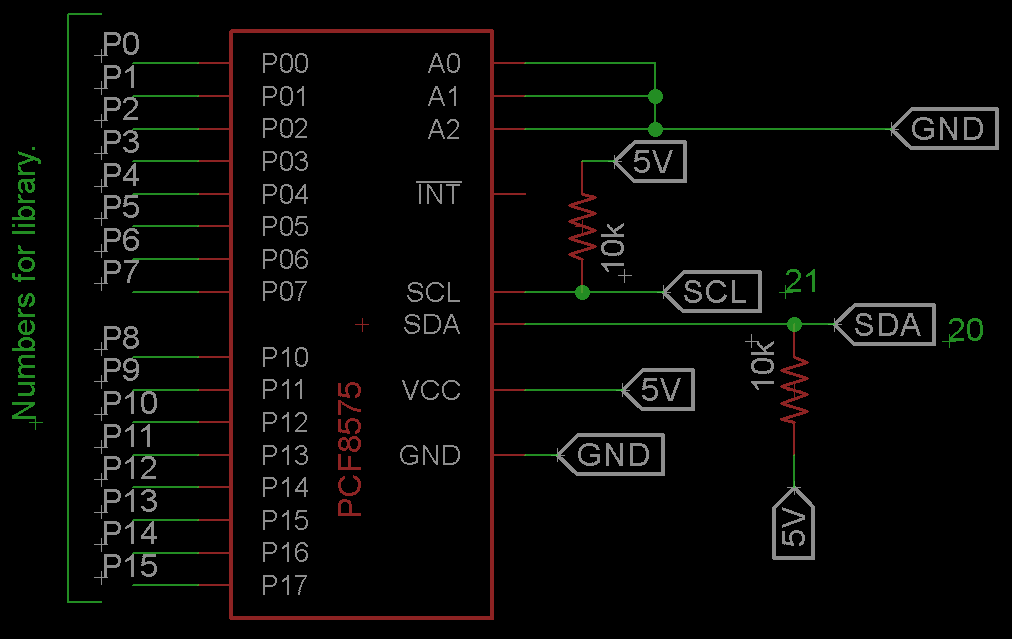

PCF8575 *:

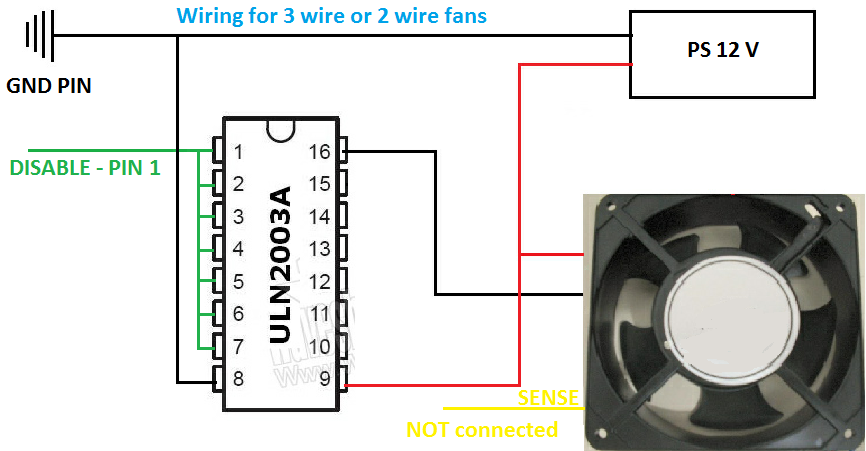

Fan:







WIFI module *:



* Turn your life easy, buy Ferduino Mega 2560 and forget all this.
