Power LED [SOLVED]

[Alfredo Lambea]

fernando hello I connected a led strip arduino mega like this photo:





LED strip comes with four cables (green pin 11) (blue pin 9) (red pin 12) and I have 12V power supply connected to the Arduino board and it works but I think it's not right how do you connect? And as you can turn on and off a clock to turn on and off from ferduino?

[Fernando Garcia]

Hi!

What's working?

What is not right?

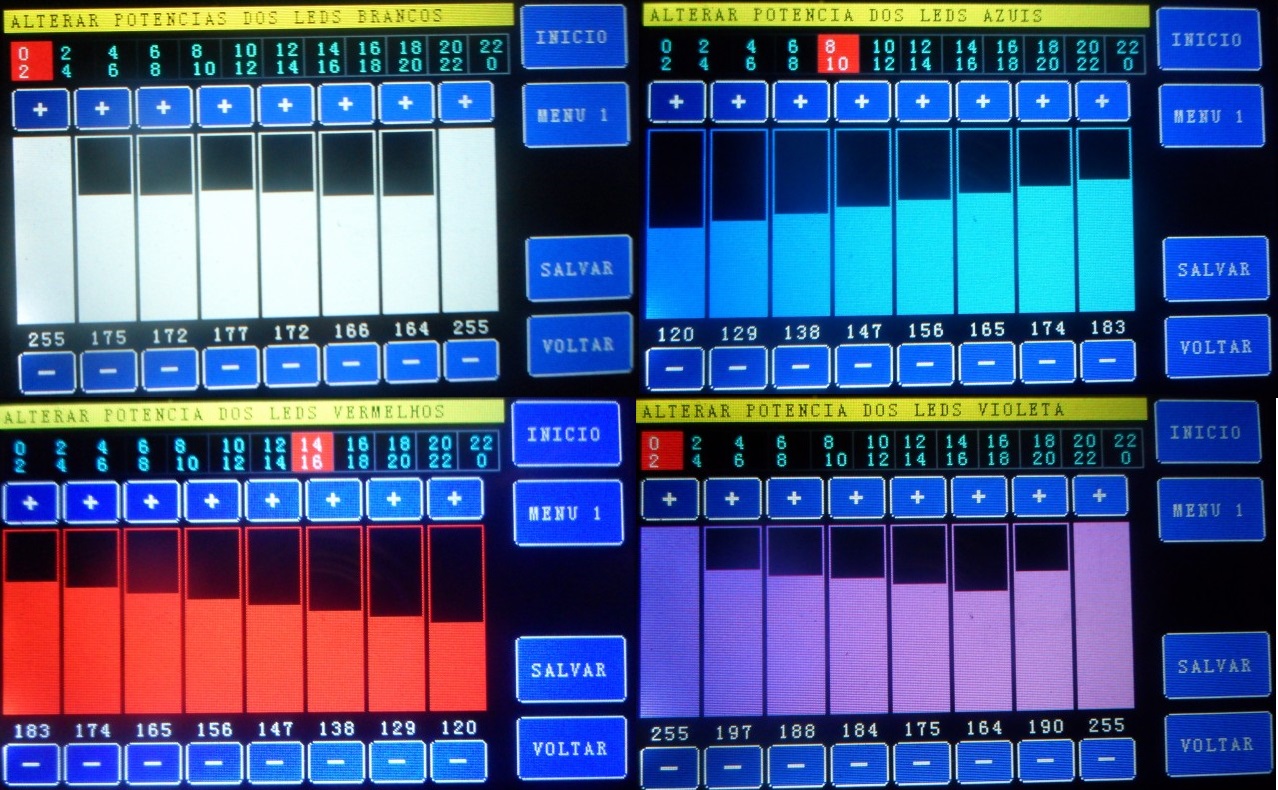

To turn off the LEDs edit the table:

Or edit the preset mode:

Best regards.

[Alfredo Lambea]

ok thanks Fernando think what is not set ferduino do you have any tutorial or instructions for configuration menejo?

[Fernando Garcia]

Hi!

In LED table you can select a value to each 15 minutes after choose the interval of 2 hours.

Example:

Select the interval 0 - 2 so the time corresponding to each value is:

00:15, 00:30, 00:45, 01:00, 01:15, 01:30, 01:45 and 02:00

To turn off all LEDs on this interval change all values to 0.

In preset mode you can choose the time for sunset and sunrise to all LEDs.
Too can select a duration to ramp reach the max. PWM.
You can select a PWM to all LEDs or a PWM to each channel.

Best regards.

[Alfredo Lambea]

ok Fernando working perfect thanks again
